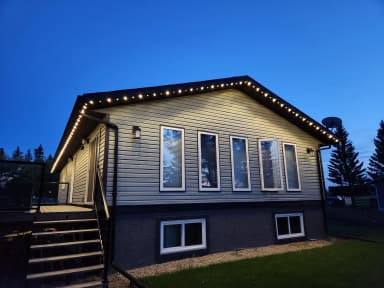

75 ft permanent lighting kit installed on a home
75 ft permanent lighting kit installed on a home

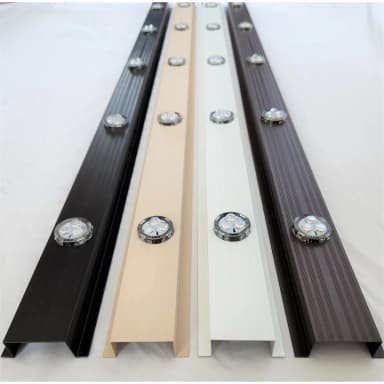

Aluminum lighting track in black, wicker and white with RGBW pucks
12V RGBW puck light strands

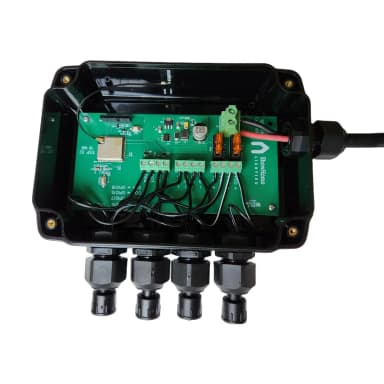

WiFi controller included in the kit
12V 150 W waterproof power supply
20 ft waterproof extension connector

Illumi Track Lights

Permanent Lighting Kit – 75 ft

$1,485.00

Complete 12V permanent lighting kit for about 75 ft of roofline: 120 RGBW pucks, aluminum track in your soffit colour, WiFi controller, power supplies, every connector and colour-matched screws.

  • 120 RGBW pucks
  • 84 ft aluminum track
  • 1 × 12V power supply
  • Saves about $300 vs installed

Track colour

$1,485

SKU ITL-LED-HOUSING-PACKAGE-75-EF4B-DEFAULTIn stock, ships from London, ON

★★★★★5.0 from 3 verified reviews
  • Free shipping over $500 (Canada)
  • 30-day returns
  • 5-year parts warranty
  • Ships from London, Ontario

In the box

Everything for 75 feet of roofline.

A small bungalow front and one side, or a wide single-storey elevation.

Black, wicker and white aluminum lighting tracks with RGBW pucks side by side
Close-up of warm white LED pucks in an aluminum soffit track
Aluminum lighting track installed flush along a soffit in daylight
Bungalow lit in cool blue permanent roofline lights at dusk

Details

Specifications and notes.

What's in the 75 ft kit

Everything needed to light about 75 linear feet of roofline: 120 individually addressable 12V RGBW pucks in 84 ft of aluminum track, a WiFi controller, power, every connector and colour-matched screws. A small bungalow front and one side, or a wide single-storey elevation.

  • 24 × 12V RGBW 5-Light Puck Strand
  • 24 × Aluminum Track, 42" 5-hole
  • 1 × WiFi Controller (WLED)
  • 1 × 12V 150 W Power Supply
  • 2 × 1 ft Extension Connector
  • 1 × 5 ft Extension Connector
  • 1 × 10 ft Extension Connector
  • 2 × 20 ft Extension Connector
  • 1 × Light T-Connector
  • 1 × Colour-Matched Soffit Screws (100)

Highlights

  • 12V RGBW pucks: 16 million colours plus a dedicated warm white channel
  • Aluminum track in black, white, wicker or brown, screws to the soffit and hides the wire
  • Free WLED app for Android and iOS: scenes, schedules, sunset triggers, zones, voice control
  • IP68 pucks, tested to −40 °C, 50,000-hour rated LEDs
  • CSA Class 2 low voltage: plugs into a GFCI outlet, no electrician required for a plug-in install
  • 5-year parts warranty, shipped from London, Ontario, free shipping over $500

Pairs well with

Often bought together

Black, wicker and white aluminum lighting track with pucks

Aluminum Track for 12V LED Lights, 2 Pack (42″ 5-hole)

Two 42-inch extruded aluminum tracks, pre-drilled for five pucks each. Black, white, wicker or brown. 1.5″ wide × 3/4″ tall.

$26

12V RGBW puck light strands

12V RGBW LED Puck Lights, 10 Pack (2 strands of 5)

12V RGBW puck lights for aluminum track, sold as two 5-light strands. 16 million colours plus true warm white, IP68, individually addressable. Extend a kit or build a custom run.

$42

20 ft sealed extension connector

20 ft Extension Connector for 12V LED Lights

20 ft sealed extension to reach a separate elevation or run back to the controller.

$19.81

Power injection T-connector

Power Injection T-Connector for 12V LED

Goes between two lights so a second power supply can feed the run. Required on runs over about 120 lights.

$10

Inline data amplifier with sealed connectors

Data Amplifier for 12V LED Lights

Inline data amplifier with sealed male and female ends. Re-boosts the control signal on long runs so the last pucks stay in sync.

$22
